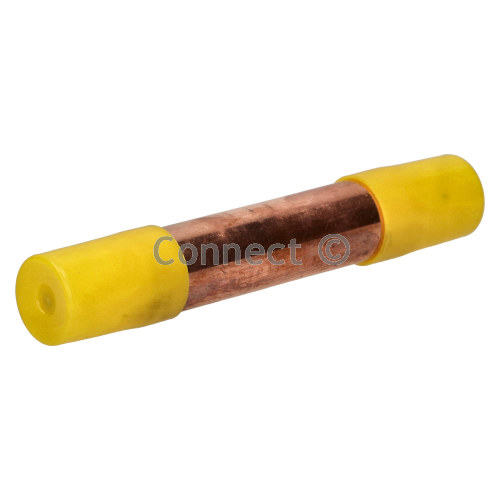

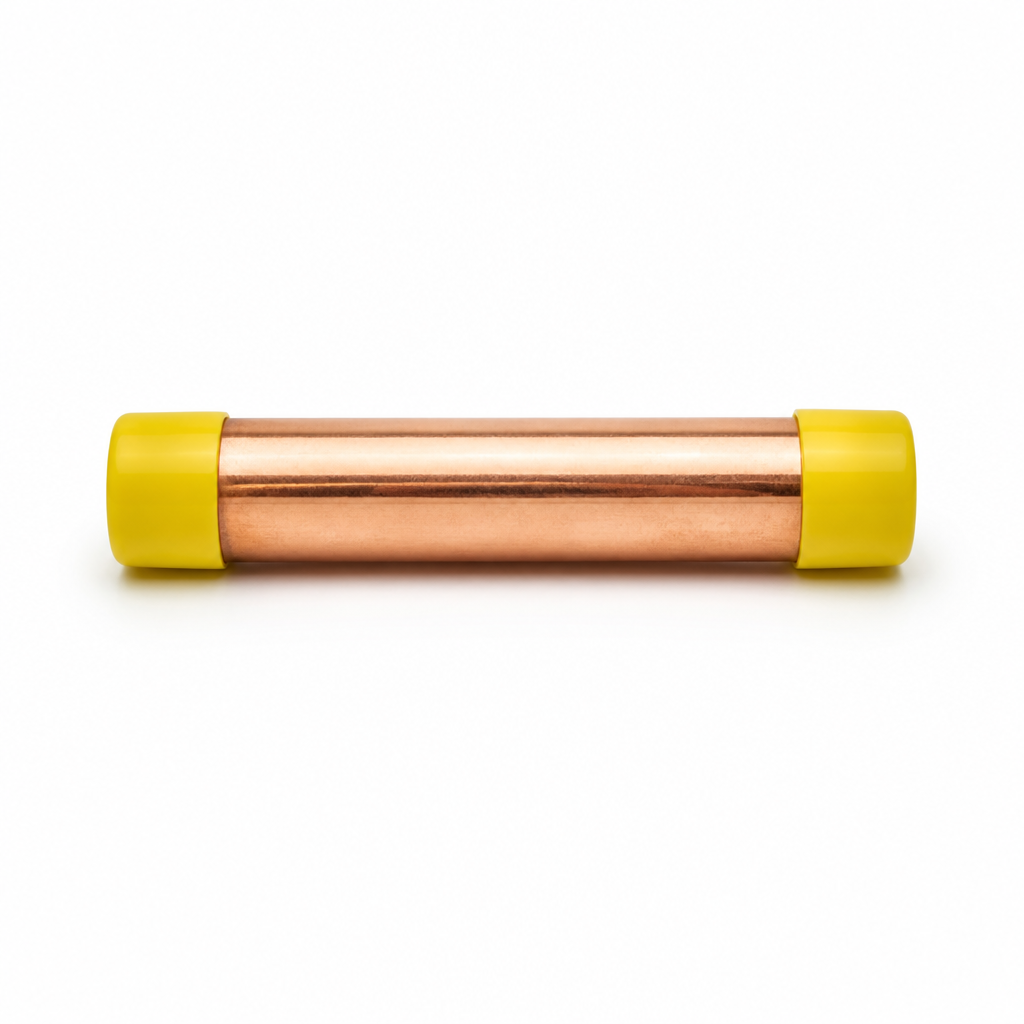

Copper Refrigeration Filter Drier – 10g, Two-Way

Copper Refrigeration Filter Drier – 10g, Two-Way contains 1 filter drier for professional refrigeration service. A filter drier captures moisture, acids and fine solid contamination that can damage the compressor, restrict the capillary or reduce system reliability.

Product details

• Quantity: 1
• Drier charge: 10g each
• Construction: copper spun service drier
• Connections: Confirm both connection sizes against the original
• Condition: new, supplied with protective end caps

Check before ordering

Match the original drier capacity, body size, inlet/outlet diameters, flow direction where marked, refrigerant, oil and system duty. Refrigerant names in the title describe common search applications; final suitability must be confirmed for the equipment.

Professional installation

Replace the drier whenever a sealed circuit is opened or contaminated; do not reuse an old drier. Keep it sealed until installation, protect the body from excess brazing heat and purge with dry nitrogen while brazing. Pressure-test, evacuate and charge the circuit correctly. Work on refrigerants must be completed by a suitably qualified engineer; R600a and R290 are highly flammable and require approved equipment and ignition-control procedures.
