Aspen Peri Pro+ Peristaltic Condensate Pump — FP3391
£308.95 inc VAT
£257.46 ex VAT
FP3391: 15 L/h published maximum flow; 12m maximum recommended head. 110–230V AC 50/60Hz. See performance curves and installation requirements below.
Delivery options and applicable charges are shown at checkout. For urgent spare parts orders, contact us before 2:00 PM (Mon–Fri) to confirm stock and dispatch. Large equipment, cold rooms and special courier items have separate delivery arrangements.
Orders up to £60: £4.90. Orders over £60 up to £100: £6.95. Orders over £100: FREE. Based on the spare-parts total after discounts, including VAT. UK mainland, parcels up to 15kg; restricted destinations and heavier parcels require a quote.
Aspen Peri Pro+ Peristaltic Condensate Pump — FP3391
Float-controlled peristaltic condensate pump. Range photograph; sensors and controls differ between variants.
Technical specification
- Brand: Aspen Pumps
- Model: FP3391
- Maximum flow: 15 L/h
- Maximum recommended head: 12m
- Supply: 110–230V AC 50/60Hz
- Maximum suction lift: 3m; suction uses part of combined lift allowance
- Inlet / outlet: 6mm ID
- Protection: IP24
- Maximum ambient / water temperature: 40°C
- Noise reference: 21 dB(A) at 1m
- Control: Float sensor
Included
Pump, float-sensor equipment, 3m power/sensor cables, wall bracket and fixing kit. Check the supplied revision’s packing list.
Accessories / select separately
Select extra hose, termination adaptors and wiring. Replacement tube kit FP3394 is a separate maintenance item; allow service access.
Setup and technical documents
Place the float reservoir and connect the high-level cut-out as shown in the manual; test interlock operation.
Engineer selection and commissioning
Match condensate production to the performance curve at the actual lift, hose diameter and route. Do not assume maximum flow and maximum head occur together. Support the drainage, avoid kinks and allow service access. Follow the supplied wiring diagram and prove pumping, drainage and any high-level interlock with water before handover. Isolate power before servicing.
Delivery
Estimated delivery: 2 working days, subject to stock and postcode confirmation. Delivery charges shown at checkout.
| Brand | Aspen Pumps |
|---|---|
| Model | FP3391 |
| Maximum flow | 15 L/h |
| Maximum recommended head | 12m |
| Supply | 110–230V AC 50/60Hz |
| Maximum suction lift | 3m; suction uses part of combined lift allowance |
| Inlet / outlet | 6mm ID |
| Protection | IP24 |
| Maximum ambient / water temperature | 40°C |
Model compatibility and reference numbers
| OEM / part reference | Not specified — please confirm before ordering. |
|---|---|
| Listed brands | Not specified — please confirm before ordering. |
| Listed models | Not specified — please confirm before ordering. |
Reference numbers and brand names assist identification; they do not by themselves confirm fit or genuine OEM manufacture. Check the full model and part number, dimensions and electrical specifications. If unsure, send us a photograph of the rating plate and original part before ordering.
Related products
Sauermann Si-10 Univers’L Condensate Pump — SI10CE03UN23
In stock
£139.13 ex VAT

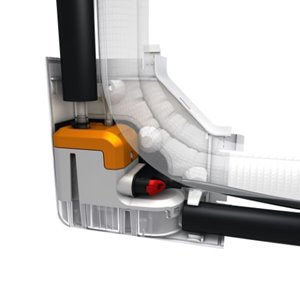

Sauermann Delta Pack 80×60 Condensate Pump Kit — DP10CE05UN23
In stock
£205.79 ex VAT

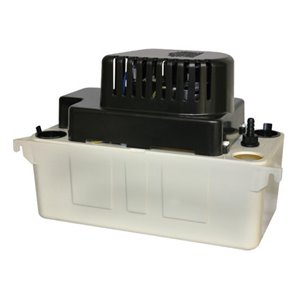

Little Giant / Pump House PH-2L Condensate Tank Pump
