Aspen Peri Pro Air Peristaltic Condensate Pump — FP3390
£337.95 inc VAT
£281.63 ex VAT
FP3390: 15 L/h published maximum flow; 12m maximum recommended head. 110–230V AC 50/60Hz. See performance curves and installation requirements below.
Delivery options and applicable charges are shown at checkout. For urgent spare parts orders, contact us before 2:00 PM (Mon–Fri) to confirm stock and dispatch. Large equipment, cold rooms and special courier items have separate delivery arrangements.
Orders up to £60: £4.90. Orders over £60 up to £100: £6.95. Orders over £100: FREE. Based on the spare-parts total after discounts, including VAT. UK mainland, parcels up to 15kg; restricted destinations and heavier parcels require a quote.
Aspen Peri Pro Air Peristaltic Condensate Pump — FP3390

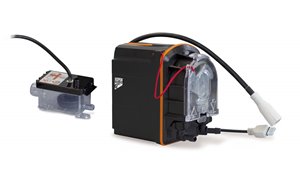

Air-temperature sensor peristaltic condensate pump. Range photograph; sensors and controls differ between variants.
Technical specification
- Brand: Aspen Pumps
- Model: FP3390
- Maximum flow: 15 L/h
- Maximum recommended head: 12m
- Supply: 110–230V AC 50/60Hz
- Maximum suction lift: 3m; suction uses part of combined lift allowance
- Inlet / outlet: 6mm ID
- Protection: IP24
- Maximum ambient / water temperature: 40°C
- Noise reference: 21 dB(A) at 1m
- Control: Air-temperature sensors
Included
Pump, air-sensor equipment, 3m power/sensor cables, wall bracket and fixing kit. Check the supplied revision’s packing list.
Accessories / select separately
Select extra hose, termination adaptors and wiring. Replacement tube kit FP3394 is a separate maintenance item; allow service access.
Setup and technical documents
Position return-air and supply-air sensors as shown in the manual; select pump speed for expected condensate production.
Engineer selection and commissioning
Match condensate production to the performance curve at the actual lift, hose diameter and route. Do not assume maximum flow and maximum head occur together. Support the drainage, avoid kinks and allow service access. Follow the supplied wiring diagram and prove pumping, drainage and any high-level interlock with water before handover. Isolate power before servicing.
Delivery
Estimated delivery: 2 working days, subject to stock and postcode confirmation. Delivery charges shown at checkout.
| Brand | Aspen Pumps |
|---|---|
| Model | FP3390 |
| Maximum flow | 15 L/h |
| Maximum recommended head | 12m |
| Supply | 110–230V AC 50/60Hz |
| Maximum suction lift | 3m; suction uses part of combined lift allowance |
| Inlet / outlet | 6mm ID |
| Protection | IP24 |
| Maximum ambient / water temperature | 40°C |
Model compatibility and reference numbers
| OEM / part reference | Not specified — please confirm before ordering. |
|---|---|
| Listed brands | Not specified — please confirm before ordering. |
| Listed models | Not specified — please confirm before ordering. |
Reference numbers and brand names assist identification; they do not by themselves confirm fit or genuine OEM manufacture. Check the full model and part number, dimensions and electrical specifications. If unsure, send us a photograph of the rating plate and original part before ordering.
Related products
Aspen Peri Pro+ Peristaltic Condensate Pump — FP3391
In stock
£257.46 ex VAT

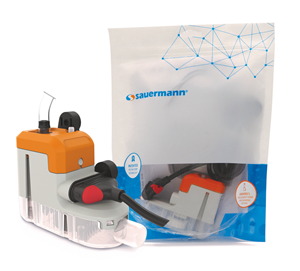

Sauermann Si-10 Univers’L Condensate Pump — SI10CE03UN23
